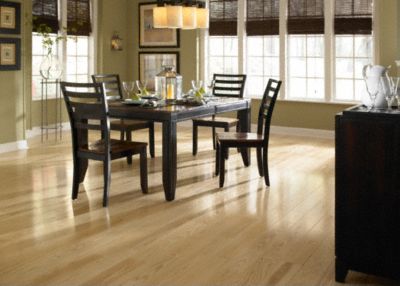

BELLAWOOD  3/4" x 5" Select Ash

A:

I would recommend putting the proper moisture barrier over the earth in the crawl space and then install a 3/8" minimum CDX plywood over the board subfloor and then your 15 or 30 lb roofing felt.
You can find complete installation instructions on the product page by clicking on the specs tab and then clicking on - Installation Guide.pdf
Thank you for your question.

A:

In a high moisture area you would be better served using an engineered floor or be very sure you can maintain the Temperature and humidity in the home between 60F-80F and humidity between 30% and 50% for best results maintained year round. If unable to keep the temperature and humidity at these levels Engineered or laminate flooring will perform better as they have higher dimensional stability. Normally under nail down flooring 15 black roofing paper is used over a wood subfloor. The wood subfloor moisture content should not be exceed 12%.

A:

15.5 gage 1/2" crown 2" long staples can work or 2" long cleat nails can work. When nailing space the staples or nails 8" apart and 1" to 2" from the board ends.

A:

As you may know, some wood species are better candidates for radiant heat (RH) installations that others, if you prefer solid wood floors, choose a #species known for its *stability. Here is the order for best floor type selections as recommended by the National Wood Flooring Association (NWFA)

Floating wood floors and laminates - are highly recommended because they tend to move as a total unit better accommodating moisture and temperature changes.

Engineered flooring - works well with radiant heat because of its dimensionally stable plywood construction. This construction allows each wood layer to run perpendicular to the other thereby resisting movement and moisture fluctuations.

Quarter sawn or rift-sawn flooring – this cut or style of flooring is preferable to Plain sawn because it will expand upwards and downwards from elevated moisture- not side to side, producing less gapping and board edge cupping.

Strip flooring - is also a better choice than plank flooring, because narrow boards expand and contract less than wide boards do because there are more seams in a floor to take up or allow for any excessive board movement.

If you choose to use solid boards or planks wider than 3" make sure the board moisture content is dry to around 6-9% before and maintained well after installation. For any wood application over radiant heat, the newly installed system should be operating some two weeks prior to the floor installation, this helps to further dry out any unknown pockets of trapped moisture. Acclimation is critical with radiant installations to prevent board shock. In no case should radiant heat surface exceed 85 degrees. Maintain in-door humidity levels at around 35-55%.

Common red and white oak have been used successfully over radiant heat. Ideally, species 15% to 20% higher in stability than red oak are considered best choices. See our Stability chart for boards listed on the higher stability spectrum. Brazilian Cherry is more stable than red oak, however we do not recommend this species for radiant heat applications. In some instances sustained high heat can have a negative impact on this species. The natural oils, calcification and other properties of this species can slowly migrate to the surface just under the clear top finishes manifested as small whitish oxidation spots. Calcification is a species characteristic, not a defect. Calcification cannot be sanded out. Therefore after installation, individual boards manifesting this condition can cut out and be replaced with new boards.

Good species for radiant applications are;

Australian Cypress, Bolivian Rosewood, Koa, Mesquite, Teaks, Blood wood, and Mahogany. Poor performers are Maple, Beech and Birch.



*Wood stability refers to a measured amount of movement that can be expected in some species after installation. Species stability is directly related to local humidity, temperature and surface moisture, therefore acclimation for radiant heat in very important for a successful installation.

#Note that even when using an ideal species for Radiant applications actual wood performance can still vary due to the Radiant system construction, installation Techniques, as well as your region of the country.



Technical and Installation

A:

The BELLAWOOD 3/4" x 5" Select Ash comes in a box that will cover 21 square feet. The flooring comes in random lengths between 12" to 86" long. The box is about 11" wide x 87" long.
